RAB Board in new Auckland mega mall

James Hardie products feature strongly in new mega-mall in Newmarket

The products provide excellent acoustic performance, impact resistance, and fire performance for these “living centres”, which this team envisions will become extensions of people’s homes.

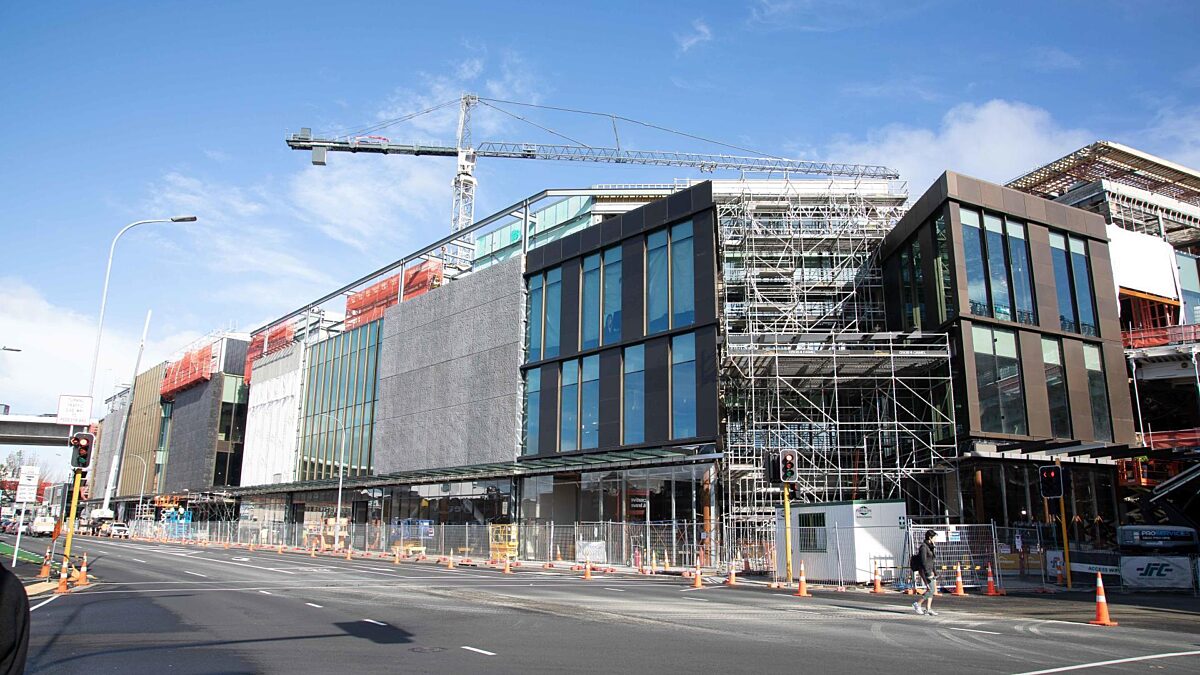

Located in one of Auckland’s leading retail districts, the new $790M Westfield redevelopment in Newmarket is a world-class retail and lifestyle destination. Stage one of the complex is complete with 40 stores now open to the public. The project is the largest undertaken by Scentre Group in Australasia, which operates under the Westfield brand in New Zealand and Australia. It incorporates multiple sites over 4.5 hectares and will be home to more than 230 new speciality stores and a rooftop lifestyle, dining, and entertainment precinct, with a gross lettable area of 88,150m².


The buildings include a concrete floor area of 186,766m², which is about 13 times the area of Eden Park. To construct the buildings, the equivalent of 33 Olympic sized swimming pools of soil was moved. The existing structure at 277 Broadway was mostly retained and is linked to the neighbouring 309 Broadway site via an air-bridge over Mortimer Pass. A selection of Hardie™ fibre cement products were specified by architect, Armando Salinas, and Scentre Group’s creative team for their density, durability non-combustibility and design flexibility.

Durable solution

The building design is sympathetic of its prominent location within the broader Newmarket context, located right next to the motorway. To provide interest and break up the façade, the design team employed different materials such as Hardie™ fibre cement, glass, precast, perforated metal, and a ‘green wall’.

In addition, Villaboard™ Lining was applied to entry soffits of the centre, which are designed to be far more open than the now-demolished hub. The cladding combines with a green wall façade of 2,700m² or just over the size of five America’s Cup yacht sails.

Constructing in the busy retail centre of Newmarket created numerous challenges for construction, with 7,100 tonnes of structural steel used in the buildings - about 12 times the amount used in the Sky Tower. Thanks to the advanced fibre cement composite structure of James Hardie products, they are lightweight and easy to install in constrained sites like Newmarket. The products were erected using a boom lift and fixed to Hardie™ CLD™ Structural Cavity Battens and RAB™ Board as a fire rated wall and structural steel components.

This solution enabled compliance with stringent Council requirements relating to fire performance. Where the structural design required stronger, stiffer shear walls, RAB™ Board 9mm was specified as a rigid air barrier over the 6mm fibre cement sheets, due to its density. RAB™ Board also allows early close-in which enabled the cladding work to start, meeting the stringent timelines for the project.

The 9mm sheets also provide excellent acoustic performance to combat external noise from the busy local roads and nearby motorway. RAB™ Board is suitable to withstand high wind pressures and creates a wind barrier which equalises pressure within the cavity to external pressures. Compared to flexible underlays, which can deteriorate from positive/negative pumping actions created by gusting winds within the cavity and on building façade, RAB™ Board provides greater long-term durability.

Also ideal in this heavy commercial space is Hardie™ Panel Compressed Sheet, which has been used as a structural floor. It’s a durable, moisture resistant alternative to particleboard, engineered timber, and plywood substrates, and a lightweight alternative to concrete. With sustainability as a core value for both James Hardie and Scentre Group, Hardie fibre cement products were a great fit for the build.

The products are comprised of sustainable, low toxicity, locally sourced products with minimal volatile organic compounds (VOCs), creating a healthier environment for these beautiful living centres that are “designed for life”.

Location
Newmarket, Auckland. New Zealand
Project Type
Redevelopment
Industry Professionals

Developed by Scentre Group, designed by Architectural Design Manager Armando Salinas
