RAB Board

Pre-Cladding

RAB Board
Pre-Cladding

View the NEW RAB Board CodeMark Certification

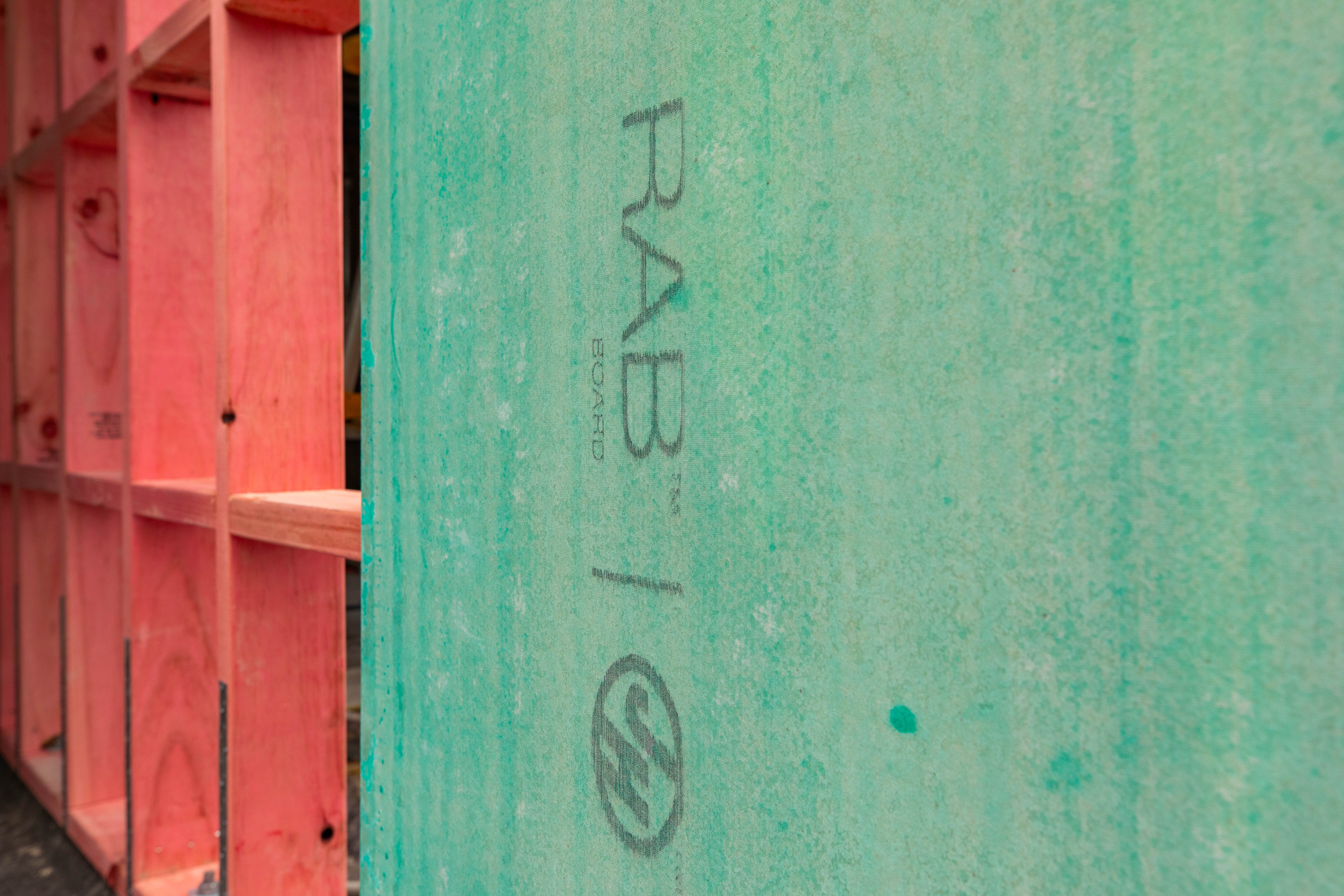

RAB Board is an all in one bracing, airtight and fire resistant fibre cement sheet. The inherent strength of RAB™ Board makes it an ideal product for use in shear wall design in residential or commercial specific design projects.

RAB™ Board is a non-combustible material that will achieve excellent fire performance, unlike traditional flexible and timber wall underlays. The unique green panel has a built in air and water resistant barrier to keep moisture out, while still allowing the moisture vapour to pass through allowing the framing cavity to dry.

RAB™ Board has up to 60 minutes fire resistance rating and superior acoustic performance to reduce external noise. It can be exposed for up to 180 days without warping or shrinking.

How does it work?

Pre-Cladding products by James Hardie work by equalising the air pressure within the external wall cavity, making the building airtight providing superior weather-tightness, structural bracing and fire protection, whereas traditional flexible wall underlay can struggle to perform in these conditions.

RAB™ Board is suitable for the exterior of residential and commercial buildings including those in Extra High (EH) wind zones. It is fixed directly to the framing and then vertical joints are sealed over the face. Our RAB™ Board is suitable for use behind all Hardie™ claddings or alternative claddings such as brick, timber weatherboard, and more.

RAB™ Board 6mm

Is a 6mm thick fibre cement sheet that is sealed on the face and edges and is suitable for use as a rigid air barrier in Extra High (EH) wind zones or in wind pressures up to 4.5kPa.

RAB™ Board 6mm is suitable for Specific Engineered Design projects outside the scope of NZS 3604.

RAB™ Board 9mm

Is a 9mm thick fibre cement sheet that is sealed on the face and edges and is suitable for use as a rigid air barrier in Extra High (EH) wind zones or in wind pressures up to 4.5kPa.

RAB™ Board 9mm is suitable for specific design shear wall for residential or commercial applications where the structural design requires strong/stiffer shear walls.

Features and benefits

  • Resistant to fire, rot resistant and resistant to moisture damage
  • Up to 60 minutes fire resistance rating (FRR) can be achieved when installed as per the Fire and Acoustic Design Manual by James Hardie
  • Increases the overall rigidity of the structure, minimising structural movement
  • Can be cut to size easily with the Hardie™ Knife, minimising dust on site
  • Will not warp or shrink when exposed to the weather, can be exposed for up to 180 days
  • Suitable for use where non-combustible materials are required
  • BRANZ Appraised
  • CodeMark certified
  • Achieves 50 year durability
  • 15 year product warranty

Product profiles

6mm thickness available in:
Length:
2450mm, 2750mm or 3000mm
Width:
1200mm

9mm thickness available in:
Length:
2450mm, 2750mm or 3000mm
Width:
1200mm

RAB Board NFPA 285 fire test
RAB Board Performance That Works Commercial
RAB Board Performance That Works
READ MORE

Feature case study

RAB Board acoustic solution for Sargeson Apartments

READ MOREVIEW ALL CASE STUDIES
