Fire and Acoustic Flooring
Tile Direct
Can be tiled directly without the need for underlay
Sound Transmission
The intertenancy lightweight flooring system achieves a Sound Transmission Class (STC) 67
Easy To Install
Easy installation for a fast and effective build time
Resistant to damage from moisture
Resistant to damage from moisture
Fire Resistant
Suitable for use where non-combustible materials are required
Impact Resistant
Outstanding impact resistance, making it ideal where walls are prone to damage
Rot Resistant
Resistant to damage from rotting
Gun Nailable
Can be gun nailed
Tile Direct
Can be tiled directly without the need for underlay
Fire & Acoustic Flooring Systems

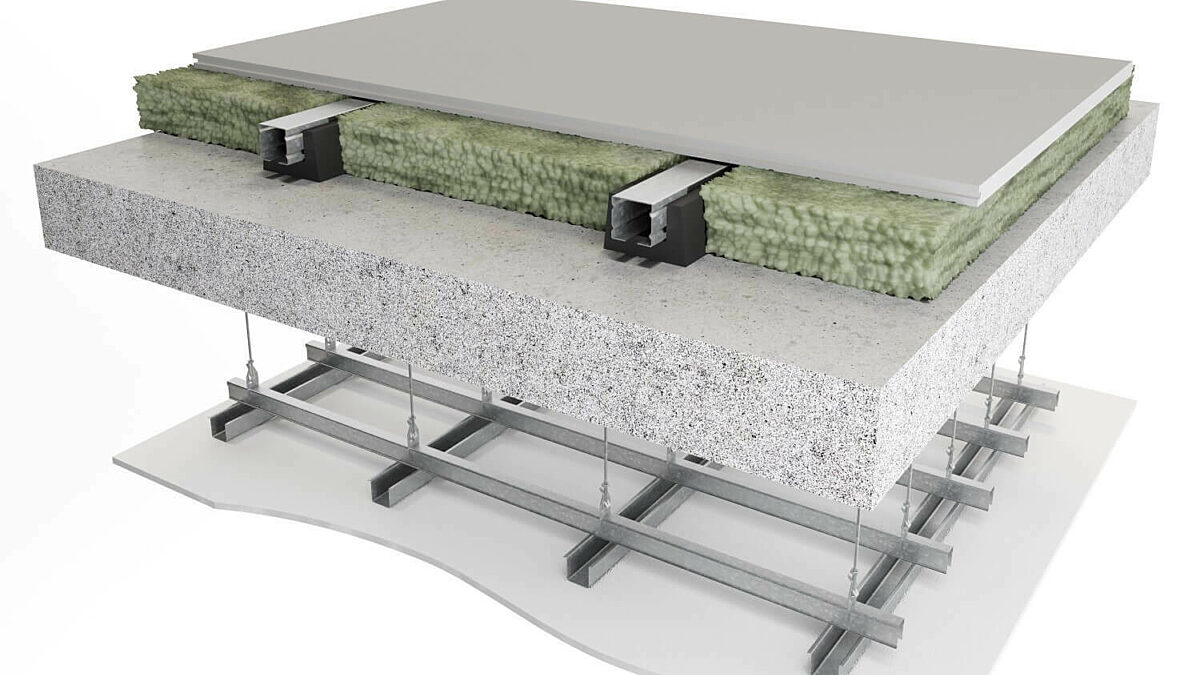

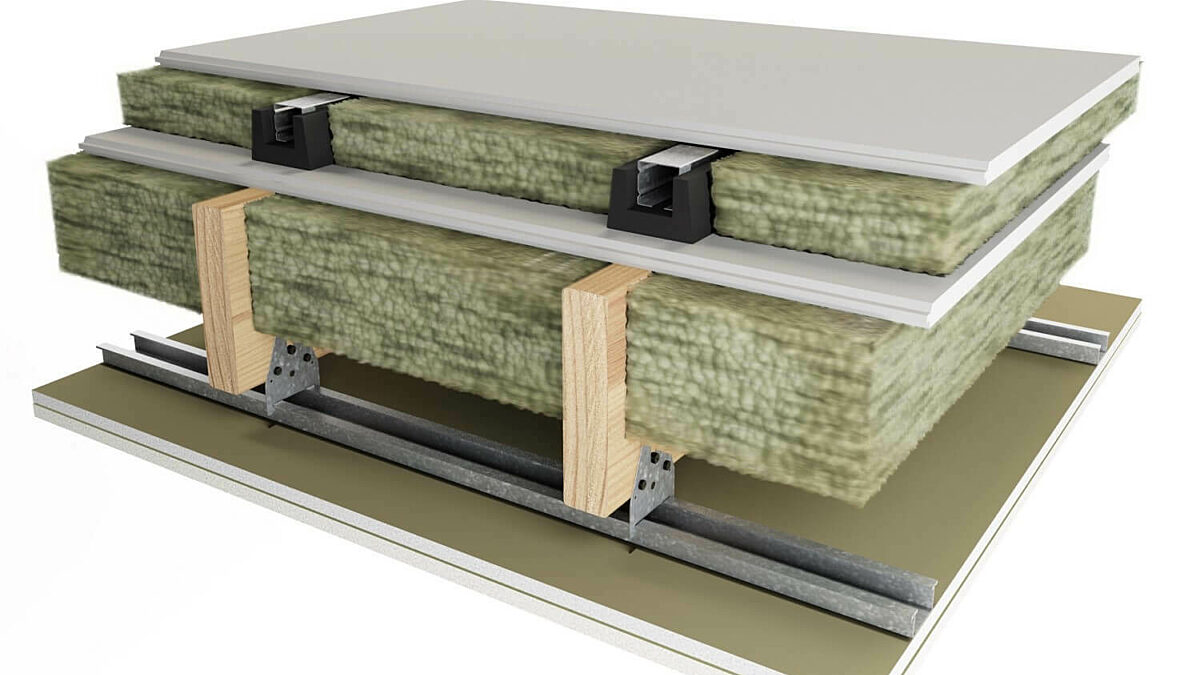

James Hardie has developed an acoustic floating floor system using timber joists or concrete floor that is suitable for use as an intertenancy floor.
Secura™ Flooring Fire & Acoustic flooring systems are a mid-floor solution, engineered to address the complete range of fire and acoustic performance needs in a multi-storey, inter-tenancy floor dwelling.
The system delivers high value acoustic performance in multilevel residential building above code requirements in both Sound Transmission Class (STC) and Impact Insulation Class (IIC).
The James Hardie acoustic floor system has been tested and verified to achieve STC up to 67 and IIC 57, exceeding the minimum requirements of Clause 6 of the NZBC. The acoustic performance of this system has been verified through independent testing at Auckland University and fire performance has been tested and assessed by BRANZ.
Features and benefits
- Services can be run through the cavity without compromising the fire rating
- Acoustic performance achieved with no reliance on carpet or acoustic underlay
- The flooring system delivers a fire rating up to 60/60/60 FRR when installed as per the Fire and Acoustic Design Manual by James Hardie
- Can be used as an intertenancy lightweight and concrete floor system
Exceeds minimum requirements of NZBC, STC - 67 and IIC - 57
Deliver superior acoustic and insulation performance, STC - 70 and IIC - 58
“Secura™ Fire and Acoustic flooring systems were the perfect mid-floor solution for this dwelling, as it provided the necessary acoustic properties - ideal for reducing noise for downstairs occupants.”
